easyControl
The easyControl system is characterized by high robustness, precise configuration options as well as simple operation.
![easyComfort Funk easyComfort Funk](/fileadmin/_processed_/4/e/csm_easyComfort-Funk_1863b95709.jpg)

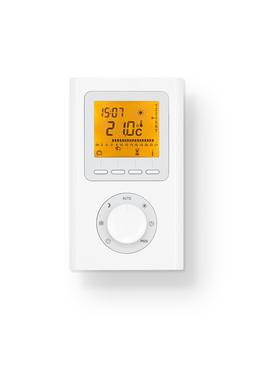

easyComfort wireless
Room thermostat:
- Wireless transmitter with a week and day program function
- Large, easy-to-read LCD screen
- Operating modes: Comfort, lower temperature, frost protection, auto, off
- Display: Set point value, actual value, time, day of the week, operating mode, battery status
- Background lighting: yellow-emotion
- Usable with any number of receivers
- Replacing batteries: At the front without losing the program.
![easyWall Funk easyWall Funk](/fileadmin/_processed_/d/c/csm_easyWall-Funk_a2fe4a1e00.jpg)

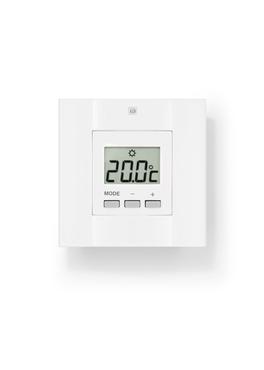

easyWall wireless
Room thermostat:
- Wireless transmitter with an easy-to-read LCD screen
- Operating modes: Comfort, lower temperature, frost protection, off
- Display: Set point value, actual value, operating mode, battery status
- Usable with any number of receivers
- Replacing batteries: At the front
- Can be combined with easyMultiroom, or usable as a single room solution
- Electronic temperature control
![easyPlug Funk easyPlug Funk](/fileadmin/_processed_/4/9/csm_easyPlug-Funk_9c23ce2bf8.jpg)

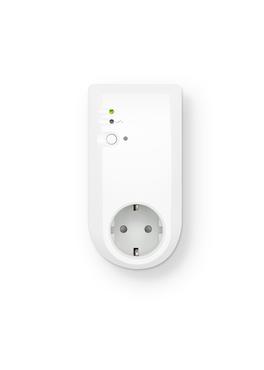

easyPlug wireless
Receiver for room thermostat:
- Receiver for direct connection with a Schuko socket
- Switching capacity: 10A, protection class IP20
- Operating voltage: 230V/50Hz
- LED status display
- Can be taught for easyComfort wireless or easyWall wireless
![easyConnect Funk easyConnect Funk](/fileadmin/_processed_/2/7/csm_easyConnect-Funk_ba132841d3.jpg)

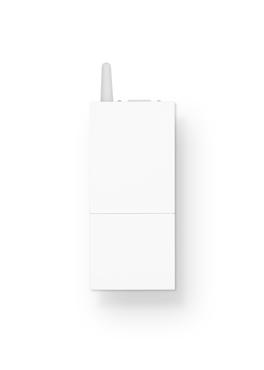

easyConnect wireless
Receiver for room thermostat:
- Receiver for direct attachment to heating panel and power supply
- Mounting: Glued or screwed to the surface
- Switching capacity: 5A
- Operating voltage: 230V/50Hz
- Protection class: IP44
- Can be taught for easyComfort wireless or easyWall wireless
![easyComfort Draht easyComfort Draht](/fileadmin/_processed_/f/9/csm_easyComfort-Draht_79fc811f86.jpg)
easyComfort wired
Room thermostat:
- Room thermostat with week and day program function
- Large, easy-to-read LCD screen
- Operating modes: Comfort, lower temperature, frost protection, auto, off
- Display: Set point value, actual value, time, day of the week, operating mode
- Protection class: IP30
- Switching capacity: 5A
- Background lighting: yellow-emotion
- Replacing batteries: At the front without losing the program.
- Mounting: Surface-mount or flush-mount box
![easyMultiroom Funk easyMultiroom Funk](/fileadmin/_processed_/a/2/csm_easyMultiroom-Funk_39ba760b30.jpg)

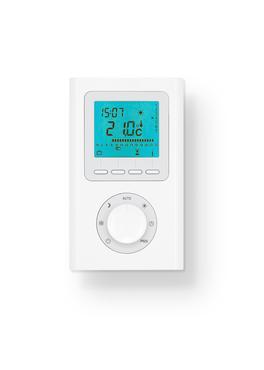

easyMultiroom wireless
Central time control:
- Wireless transmitter with a week and day program function
- Large, easy-to-read LCD screen
- Operating modes: Comfort, lower temperature, frost protection, auto, off
- Display: Set point value, actual value, time, day of the week, operating mode, battery status
- Background lighting: blue
- Zone control: Standard up to 4 zones, can be upgraded up to 6 zones in combination with easyWall wireless
- Replacing batteries: At the front without losing the program.
![highWindows highWindows](/fileadmin/_processed_/b/7/csm_easyWindows_5c6ea1e94f.jpg)

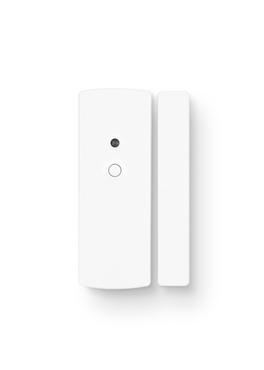

highWindows
Energy-saving function:
Switches automatically to frost protection when windows or doors are opened. One contact required per window or door. In combination with easyComfort, highComfort and easyWall
highControl
With highControl, your heating is always online! Enter the wireless world and control your heater using an app on your Smartphone or via the local components. All highControl components are networked together via the highControl wireless protocol and can be controlled and operated remotely.
![highComfort highComfort](/fileadmin/_processed_/3/0/csm_highComfort_60d12f2241.jpg)
highComfort
Room thermostat:
- Wireless station with a week and day program function
- Large, easy-to-read LCD screen
- Operating modes: Comfort, lower temperature, frost protection, auto, off
- Display: Set point value, actual value, time, day of the week, operating mode, battery status
- Background lighting: red/yellow-emotion/green
- Can control any number of highControl actuators
- Replacing batteries: At the front without losing the program.
![highConnect highConnect](/fileadmin/_processed_/e/5/csm_highConnect_a0a4ab1172.jpg)
highConnect
Actuator for room thermostat:
- Actuator for direct connection to heating panel and power supply
- Mounting: Glued or screwed to the surface
- Switching capacity: 16A
- Operating voltage: 230V/50Hz
- Protection class: IP44
- Can be taught for highComfort
![highLan highLan Smart Home control for easyTherm® infrared heating](/fileadmin/user_upload/Produkte/Regelungen/highlan-smart-home-regelung-easytherm-infrarotheizung.jpg)
highLan
LAN interface:
- Interface between LAN and the highComfort wireless protocol
- The heating system can be controlled via an app for iOS or Android 2.3.3
- App can be downloaded for free (Smartphone not included)
- RJ45 connection for Ethernet cable*
- 230V/50Hz power supply
- Connection cable included in the delivery
*) Connection to Wi-Fi router possible
![highPlug highPlug](/fileadmin/_processed_/9/b/csm_highPlug_7d39295472.jpg)
highPlug
Actuator for room thermostat:
- Actuator for direct connection with a Schuko socket
- Switching capacity: 10A
- Protection class: IP20
- Operating voltage: 230V/50Hz
- LED status display
- Can be networked with highComfort
![highPhone highPhone](/fileadmin/_processed_/2/1/csm_highPhone_6926afe323.jpg)

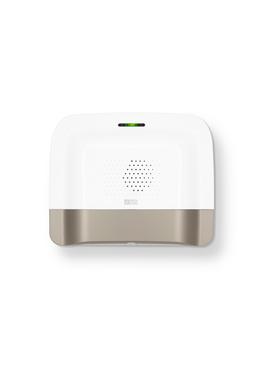

highPhone
GSM modem:
- Voice-controlled menu navigation with confirmation of number via stationary DTMF or mobile phone
- Panel control in combination with highComfort
